TECHNICAL DATA
规格参数
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
|---|---|
| Material | Polycarbonate |
| Mass | approx. 20 g |

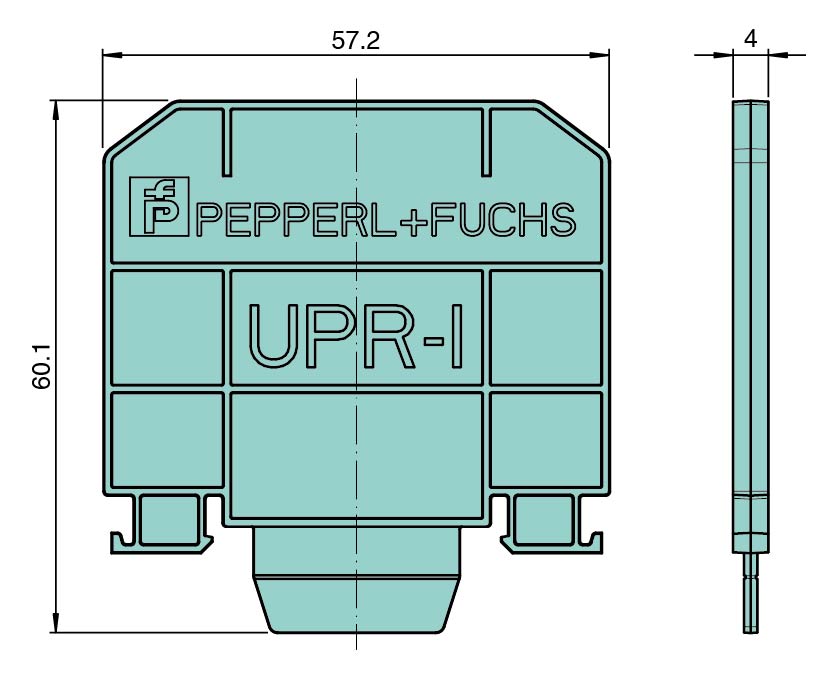

| Dimensions | 4 x 57 x 60 mm (0.16 x 2.24 x 2.36 inch) |
| Height60 mmWidth57 mmLength4 mm | Height60 mmWidth57 mmLength4 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Height | 60 mm |
| Width | 57 mm |
| Length | 4 mm |
| Packing unit | 10 pieces |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
