TECHNICAL DATA
规格参数
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
|---|---|
| Connection | 3 conductors |
| Supply2 ConductorsFault output1 Conductors | Supply2 ConductorsFault output1 Conductors |
| Material | Polycarbonate |
| Mass | approx. 440 g |

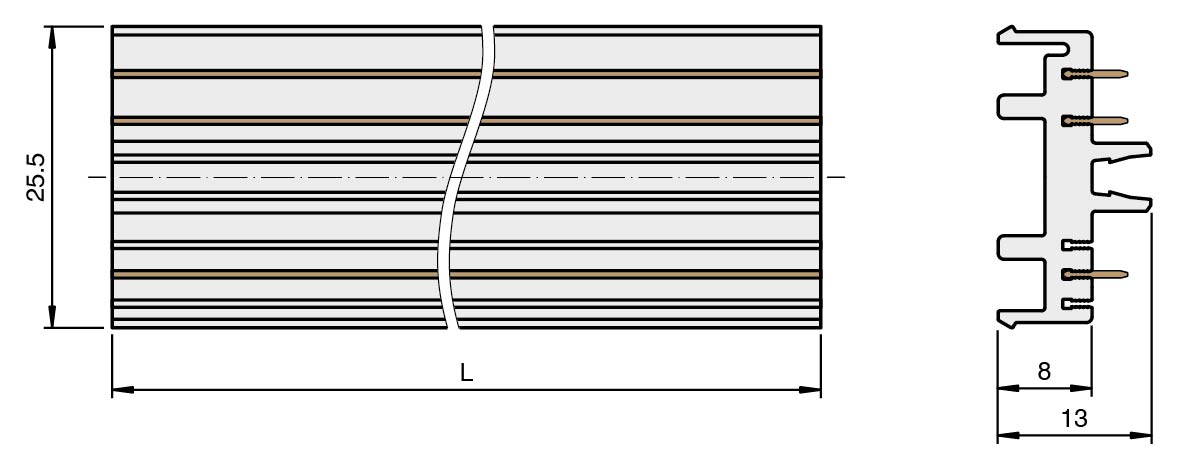

| Dimensions | 25.5 x 13 x 2000 mm (1 x 0.5 x 78.7 inch) (W x H x L) |
| Height13 mmWidth25.5 mmLength2000 mm | Height13 mmWidth25.5 mmLength2000 mm |
| Mounting | in 35 mm DIN mounting rail acc. to EN 60715:2001 Height: 15 mm |
| Supply | 2 Conductors |
| Fault output | 1 Conductors |
| Height | 13 mm |
| Width | 25.5 mm |
| Length | 2000 mm |
