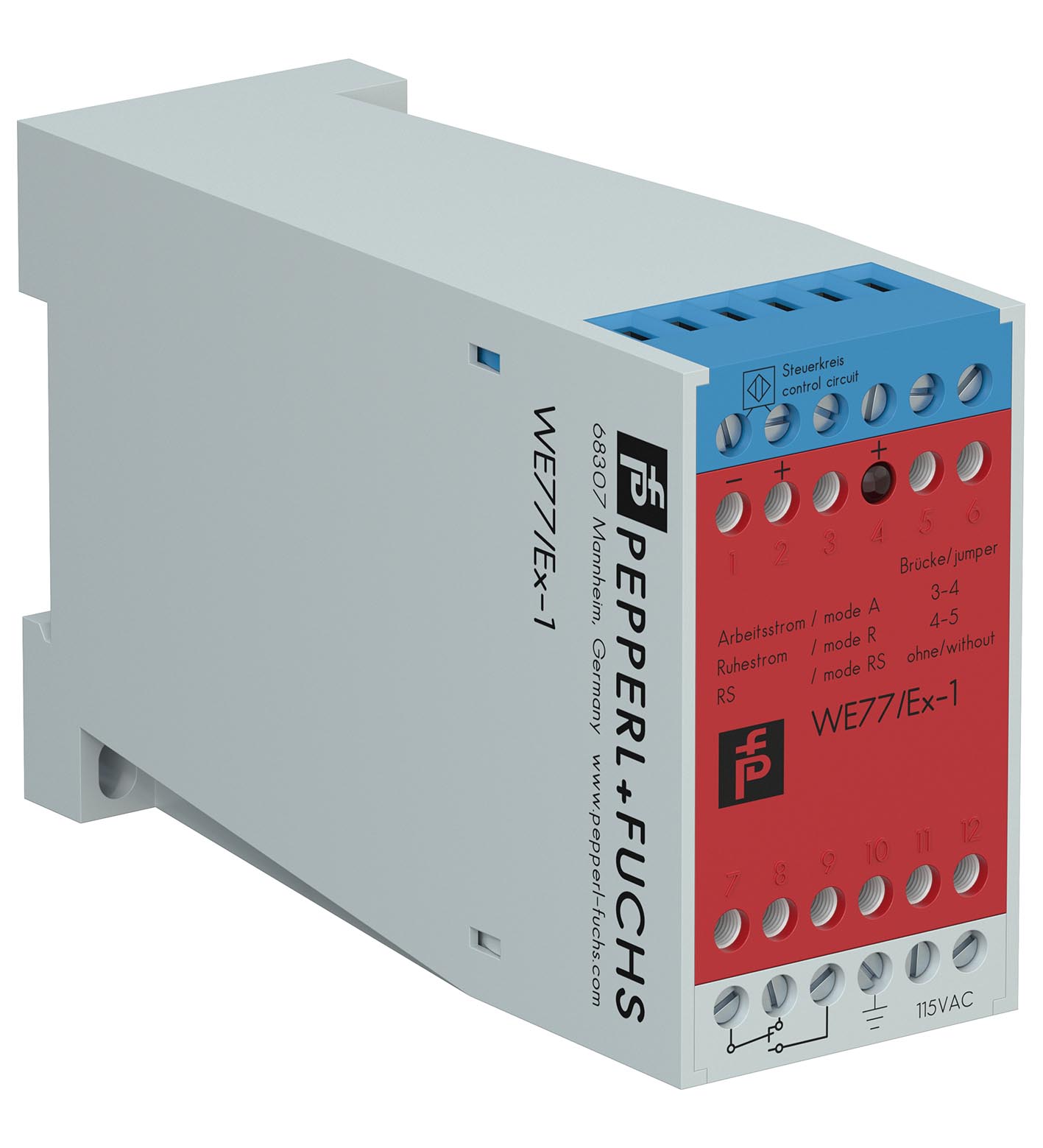

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Input |
|---|---|

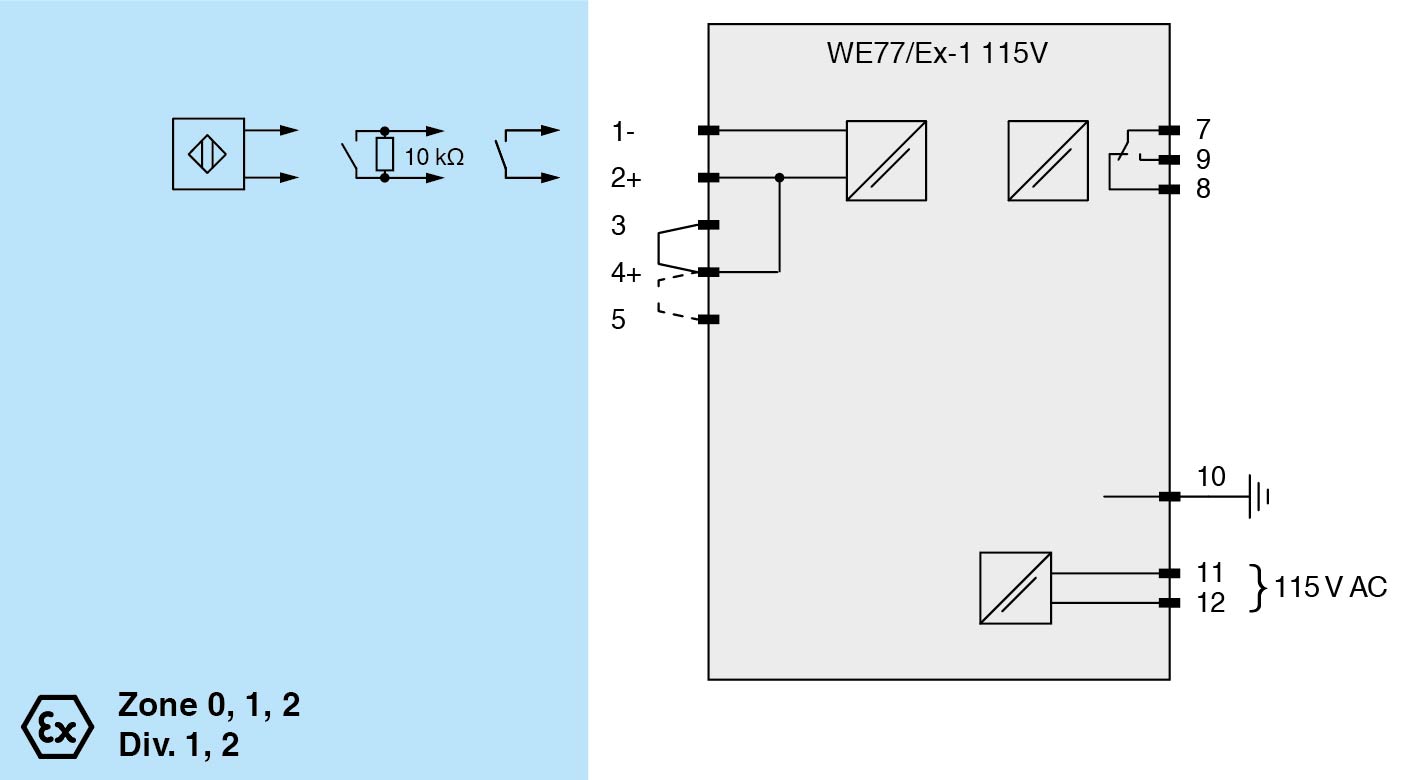

| Connection | terminals 11, 12 |
| Rated voltage | 103.5 ... 126 V AC , 45 ... 65 Hz |
| Power dissipation | 1.6 W |
| Power consumption | approx. 2.3 VA |
| Connection side | field side |
| Connection | terminals 1-, 2+ |
| Rated values | acc. to EN 60947-5-6 (NAMUR), see manual for electrical data |
| Open circuit voltage/short-circuit current | approx. 8 V DC / approx. 8 mA |
| Switching point/switching hysteresis | 1.2 ... 2.1 mA / approx. 0.2 mA |
| Pulse/Pause ratio | min. 0.5 ms / min. 0.5 ms |
| Line fault detection | breakage I ≤ 0.1 mA |
| Connection side | control side |
| Connection | terminals 7, 8, 9 |
| Output | signal ; relay |
| Contact loading | 253 V AC/2 A/500 VA/cos φ min. 0,7; 125 V AC/4 A/500 VA cos φ min. 0,7; 40 V DC/2 A/80 W ohmic load |
| Energized/De-energized delay | approx. 10 ms / approx. 20 ms |
| Mechanical life | 107 switching cycles |
| Switching frequency | < 10 Hz |
| Input/Output | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Input/power supply | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Output/power supply | basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Display elements | LED |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1:2010 | Directive 2014/35/EUEN 61010-1:2010 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Directive 2014/35/EU | EN 61010-1:2010 |
| Degree of protection | IEC 60529 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 390 g |

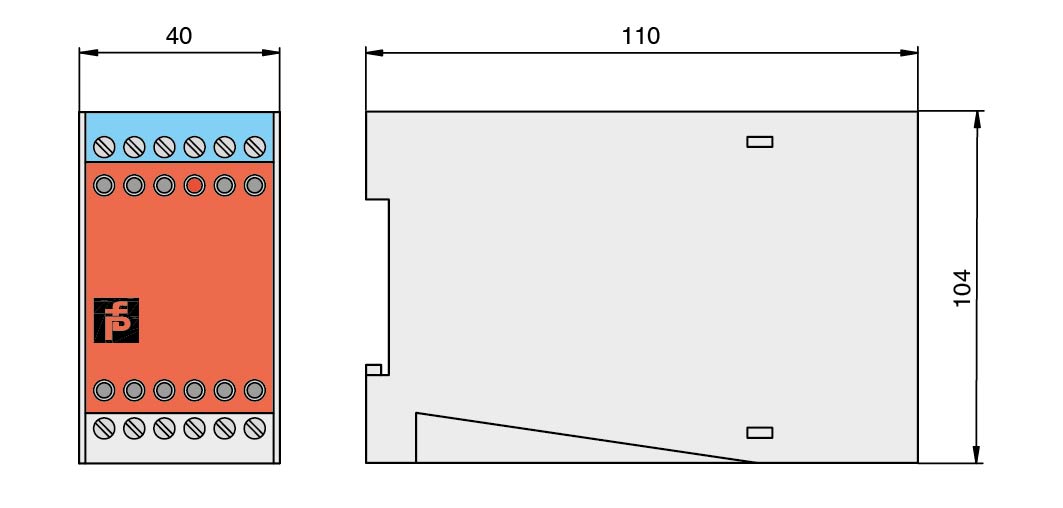

| Dimensions | 40 x 104 x 110 mm (1.6 x 4.1 x 4.3 inch) (W x H x D) , housing type W1 |
| EU-type examination certificate | PTB 02 ATEX 2065 |
| Marking II (1)GD [EEx ia] IIC [circuit(s) in zone 0/1/2]InputEx iaVoltageUo13.4 V DCCurrentIo31 mAPowerPo145 mW (trapezoid characteristic curve) | Marking II (1)GD [EEx ia] IIC [circuit(s) in zone 0/1/2]InputEx iaVoltageUo13.4 V DCCurrentIo31 mAPowerPo145 mW (trapezoid characteristic curve) |
| Supply | Supply |
| Maximum safe voltageUm126.5 V AC (Attention! The rated voltage can be lower.) | Maximum safe voltageUm126.5 V AC (Attention! The rated voltage can be lower.) |
| Output | Output |
| Maximum safe voltageUm253 V AC (Attention! The rated voltage can be lower.) | Maximum safe voltageUm253 V AC (Attention! The rated voltage can be lower.) |
| Galvanic isolation | Galvanic isolation |
| Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 | Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 |
| Marking | II (1)GD [EEx ia] IIC [circuit(s) in zone 0/1/2] |
| Input | Ex ia |
| Voltage | 13.4 V DC |
| Current | 31 mA |
| Power | 145 mW (trapezoid characteristic curve) |
| Maximum safe voltage | 126.5 V AC (Attention! The rated voltage can be lower.) |
| Maximum safe voltage | 253 V AC (Attention! The rated voltage can be lower.) |
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Input/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-11:2012 |
| UL approval | UL approval |
| Control drawing116-0115C (cULus) | Control drawing116-0115C (cULus) |
| Control drawing | 116-0115C (cULus) |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
