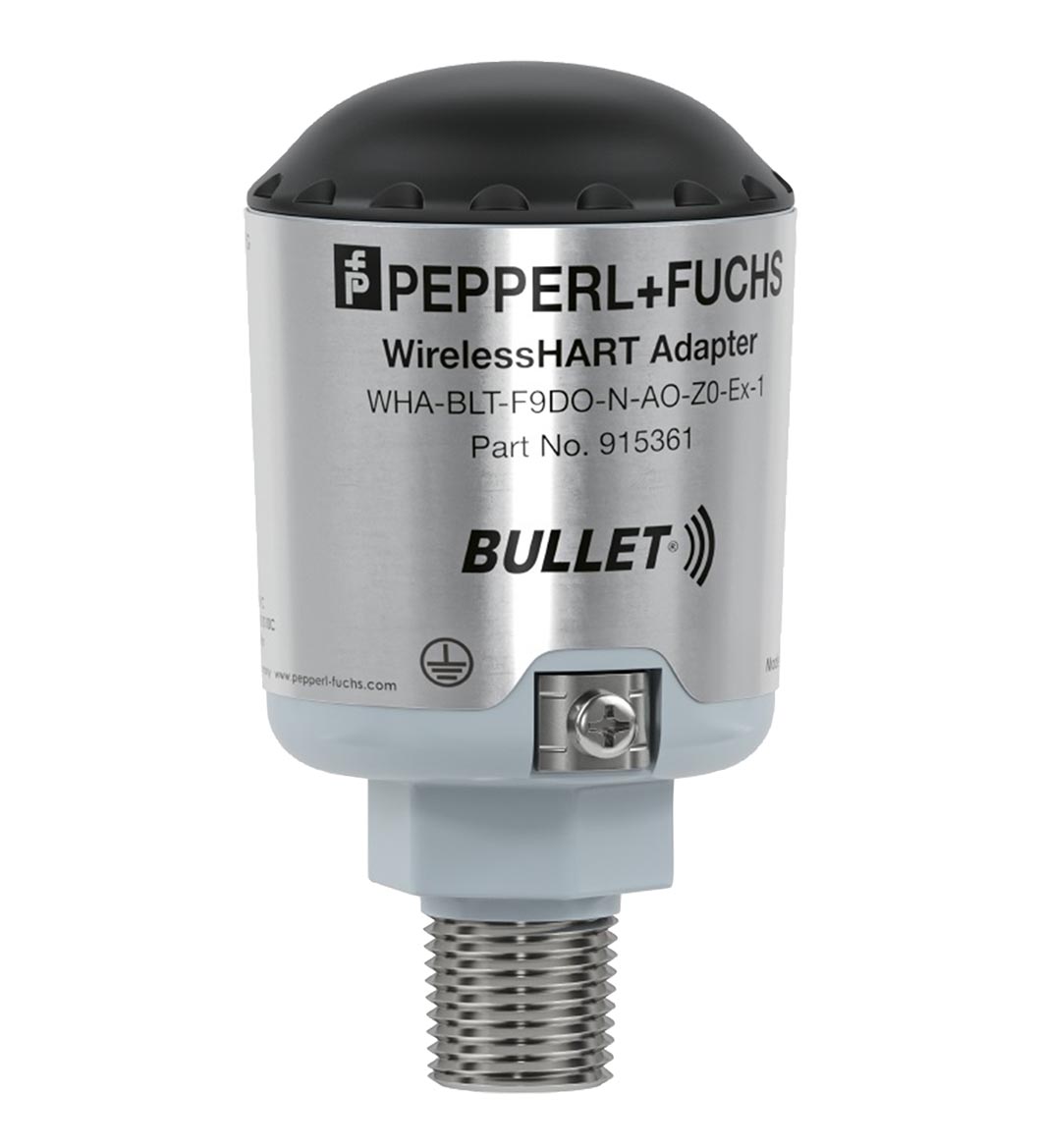

产品数据表
Datasheet
可下载打开资料
TECHNICAL DATA
规格参数
Supply
| Rated voltage | 7 ... 30 V DC |
|---|---|
| Rated current | < 1 mA , max. 25 mA |
| Output current | 3.2 ... 25 mA |
| Supply | loop power for field devicesvoltage: 1 ... 2.5 V DC, adjustable in steps of 0.5 V |

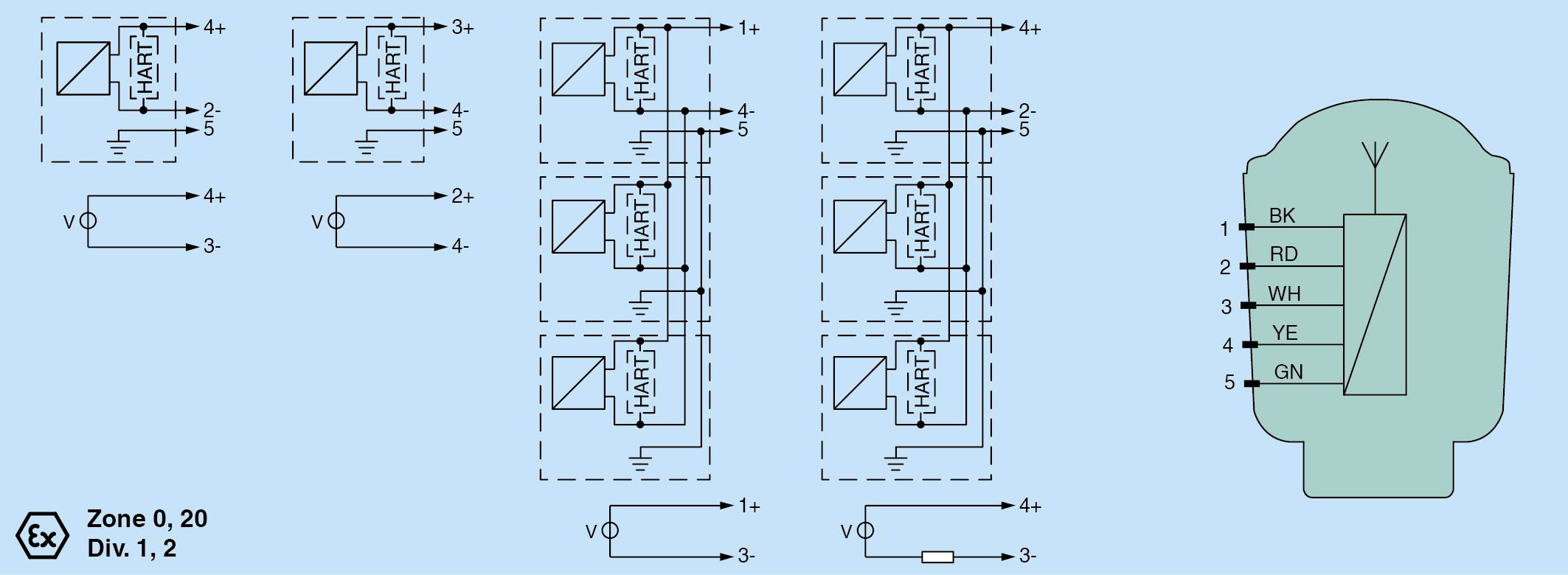

| Connection | - 5 wires, 600 mm long, exiting from male thread NPT1/2 - 1 external grounding point |
| HART communication | HART communication |
| ProtocolHART 7.1, backward compatibleNumber of devicesup to 8 HART field devices (depending on installation) | ProtocolHART 7.1, backward compatibleNumber of devicesup to 8 HART field devices (depending on installation) |
| Protocol | HART 7.1, backward compatible |
| Number of devices | up to 8 HART field devices (depending on installation) |
| Interface | internal antenna |
| Communication | WirelessHART specifications- physical layer: IEEE 802.15.4.2006- frequency band: 2.4 GHz (ISM band, licence free)- maximum transmit power: +10 dBm- outdoor transmission range: 235 m- communication standard: WirelessHART acc. to IEC 62591 |
| Radio and telecommunication terminal equipment | The usage of 2.4 GHz equipment is bound to local restrictions. Ensure that restrictions allow usage of this product before commisioning. |
| Directive 2014/53/EUEN 300 328 V2.1.1:2016 EN 301 489-1 V2.2.0:2017 EN 301 489-17 V3.2.0:2017FCC CFR47 Part 15 B and CANSI C63.4-2003 , FCC ID: X89-WA1101 | Directive 2014/53/EUEN 300 328 V2.1.1:2016 EN 301 489-1 V2.2.0:2017 EN 301 489-17 V3.2.0:2017FCC CFR47 Part 15 B and CANSI C63.4-2003 , FCC ID: X89-WA1101 |
| Directive 2014/53/EU | EN 300 328 V2.1.1:2016 EN 301 489-1 V2.2.0:2017 EN 301 489-17 V3.2.0:2017 |
| FCC CFR47 Part 15 B and C | ANSI C63.4-2003 , FCC ID: X89-WA1101 |
| Degree of protection | IEC 60529:2013 |
| Ambient temperature | temperature class T5: -40 ... 85 °C (-40 ... 185 °F) temperature class T6: -40 ... 75 °C (-40 ... 167 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | max. 100 % |
| Degree of protection | IP67 |
| Material | aluminum alloy with polyurethane enamel paint |
| Mass | 460 g |
| Dimensions | 60.8 x 60.8 x 100 mm (l x w x h) |
| Height100 mmDiameter60.8 mm | Height100 mmDiameter60.8 mm |
| Height | 100 mm |
| Diameter | 60.8 mm |
| EU-type examination certificate | FM 17 ATEX 0046 X |
| Marking II 1G Ex ia IIC T6...T5 Ga [exsign] II 1D Ex ia IIIC T95°C Da | Marking II 1G Ex ia IIC T6...T5 Ga [exsign] II 1D Ex ia IIIC T95°C Da |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 | Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 |
| Marking | II 1G Ex ia IIC T6...T5 Ga [exsign] II 1D Ex ia IIIC T95°C Da |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-11:2012 |
| FM approval | FM 17 NUS 0010 FM 17 US 0191 X |
| Control drawing116-0425 (cFMus)Approved forIS Class I, II, III, Division 1, Groups A-G Class I, Zone 0, AEx ia IIC T6...T5 Ga Zone 20, AEx ia IIIC T95°C Da | Control drawing116-0425 (cFMus)Approved forIS Class I, II, III, Division 1, Groups A-G Class I, Zone 0, AEx ia IIC T6...T5 Ga Zone 20, AEx ia IIIC T95°C Da |
| CSA approval | FM 17 NCA 0004 FM 17 CA 0102 X |
| Control drawing116-0425 (cFMus)Approved forIS Class I, II, III, Division 1, Groups A-G Ex ia IIC T6...T5 Ga Ex ia IIIC T95°C Da associated apparatus [Ex ia] | Control drawing116-0425 (cFMus)Approved forIS Class I, II, III, Division 1, Groups A-G Ex ia IIC T6...T5 Ga Ex ia IIIC T95°C Da associated apparatus [Ex ia] |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx FMG 17.0020XIECEx markingEx ia IIC T6...T5 Ga , Ex ia IIIC T95°C DaStandardsIEC 60079-0:2011 , IEC 60079-1:2014 , IEC 60079-11:2011 , IEC 60079-31:2013 | IECEx certificateIECEx FMG 17.0020XIECEx markingEx ia IIC T6...T5 Ga , Ex ia IIIC T95°C DaStandardsIEC 60079-0:2011 , IEC 60079-1:2014 , IEC 60079-11:2011 , IEC 60079-31:2013 |
| Control drawing | 116-0425 (cFMus) |
| Approved for | IS Class I, II, III, Division 1, Groups A-G Class I, Zone 0, AEx ia IIC T6...T5 Ga Zone 20, AEx ia IIIC T95°C Da |
| Control drawing | 116-0425 (cFMus) |
| Approved for | IS Class I, II, III, Division 1, Groups A-G Ex ia IIC T6...T5 Ga Ex ia IIIC T95°C Da associated apparatus [Ex ia] |
| IECEx certificate | IECEx FMG 17.0020X |
| IECEx marking | Ex ia IIC T6...T5 Ga , Ex ia IIIC T95°C Da |
| Standards | IEC 60079-0:2011 , IEC 60079-1:2014 , IEC 60079-11:2011 , IEC 60079-31:2013 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
